MSI has built its PSU lineup steadily over the past several years, and the new MPG Ai1600TS PCIE5 currently sits at the top of that stack. At 1600 watts and with a retail price of about $500, it targets a narrow buyer profile: builders running power-hungry multi-GPU workstations, extreme overclockers, and system integrators who treat protection features as infrastructure rather than marketing copy. At this price and wattage, the bar is high, and a respectable label on the box is not enough.

The platform, as with MSI’s MAG series, comes from Channel-Well Technology (CWT), a Taiwanese OEM with a long and well-regarded history across mid-to-top-tier PSU design. Regardless, at this price range, even CWT’s involvement is a baseline assurance and not a selling point by itself. What matters here is the specification level MSI has chosen, and the Ai1600TS is built to a meaningfully higher standard than the MAG units. The distinction begins with the USB-C connector on the rear of the unit, which is the feature MSI has built its entire MPG marketing strategy around. Several PSU manufacturers have been trying to combat the plague of damaged 12V-2×6 connectors due to overcurrent and overheating – MSI’s approach, the GPU Safeguard/Safeguard+, fundamentally is per-wire current monitoring on the GPU connector. Let’s examine the MSI MPG Ai1600TS PCIE5 to see if it is worthy of grabbing a spot in our best power supplies list.

Specifications and Design

Swipe to scroll horizontally

MSI MPG Ai1600TS PCIE5 Power specifications ( Rated @ 40 °C )
RAIL	+3.3V	+5V	+12V	+5Vsb	-12V
MAX OUTPUT	22A	22A	133.33A	3A	0.A
Row 2 – Cell 0	120W	120W	1599.96W	15W	0W
TOTAL	1600W	Row 3 – Cell 2	Row 3 – Cell 3	Row 3 – Cell 4	Row 3 – Cell 5
AC INPUT	100 – 240 VAC, 50 – 60 Hz	Row 4 – Cell 2	Row 4 – Cell 3	Row 4 – Cell 4	Row 4 – Cell 5
MSRP	$ 500	Row 5 – Cell 2	Row 5 – Cell 3	Row 5 – Cell 4	Row 5 – Cell 5

In the Box

The outer packaging is a large, sturdy cardboard box with a blue and purple color scheme and a photograph of the unit on the front. Inside, the unit sits in a synthetic pouch surrounded by foam inserts on both ends. The presentation is confident and visually excessive, hinting at the visuals of the unit itself.

MSI MPG Ai1600TS PCIE5

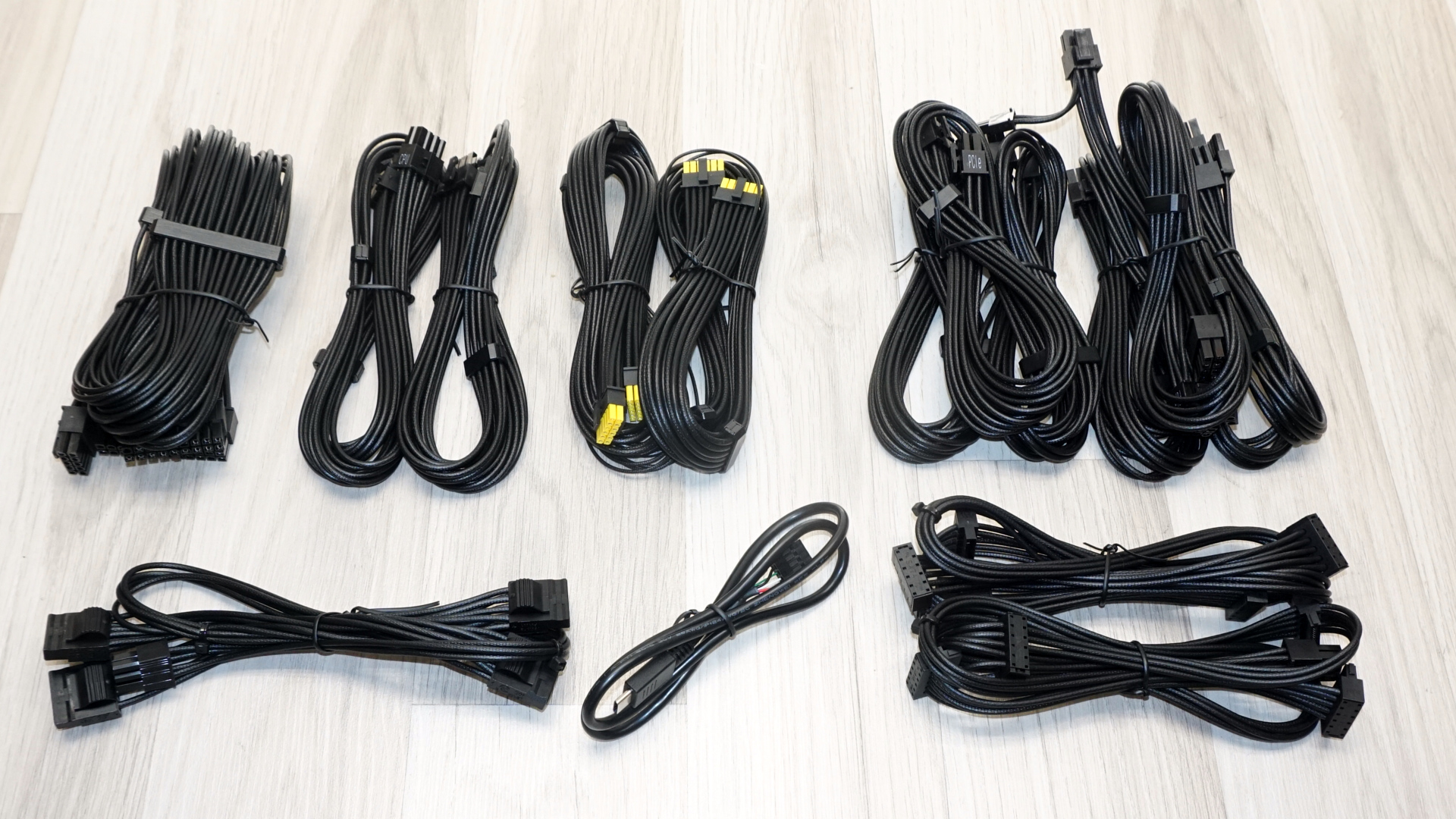

Connector type	Hardwired	Modular
ATX 24 Pin	–	1
EPS 4+4 Pin	–	1
EPS 8 Pin	–	1
PCI-E 5.0	–	2
PCI-E 8 Pin	–	7
SATA	–	8
Molex	–	4
Floppy	–	–

External Appearance

At 190mm in length, the Ai1600TS is substantially longer than the ATX design guide’s recommendation and will not fit in compact enclosures. Case compatibility should be verified before purchase. The chassis carries a satin black paint finish that is applied evenly across all surfaces with no visible inconsistencies or runs.

MSI MPG Ai1600TS PCIE5 PSU — (Image credit: Tom’s Hardware)

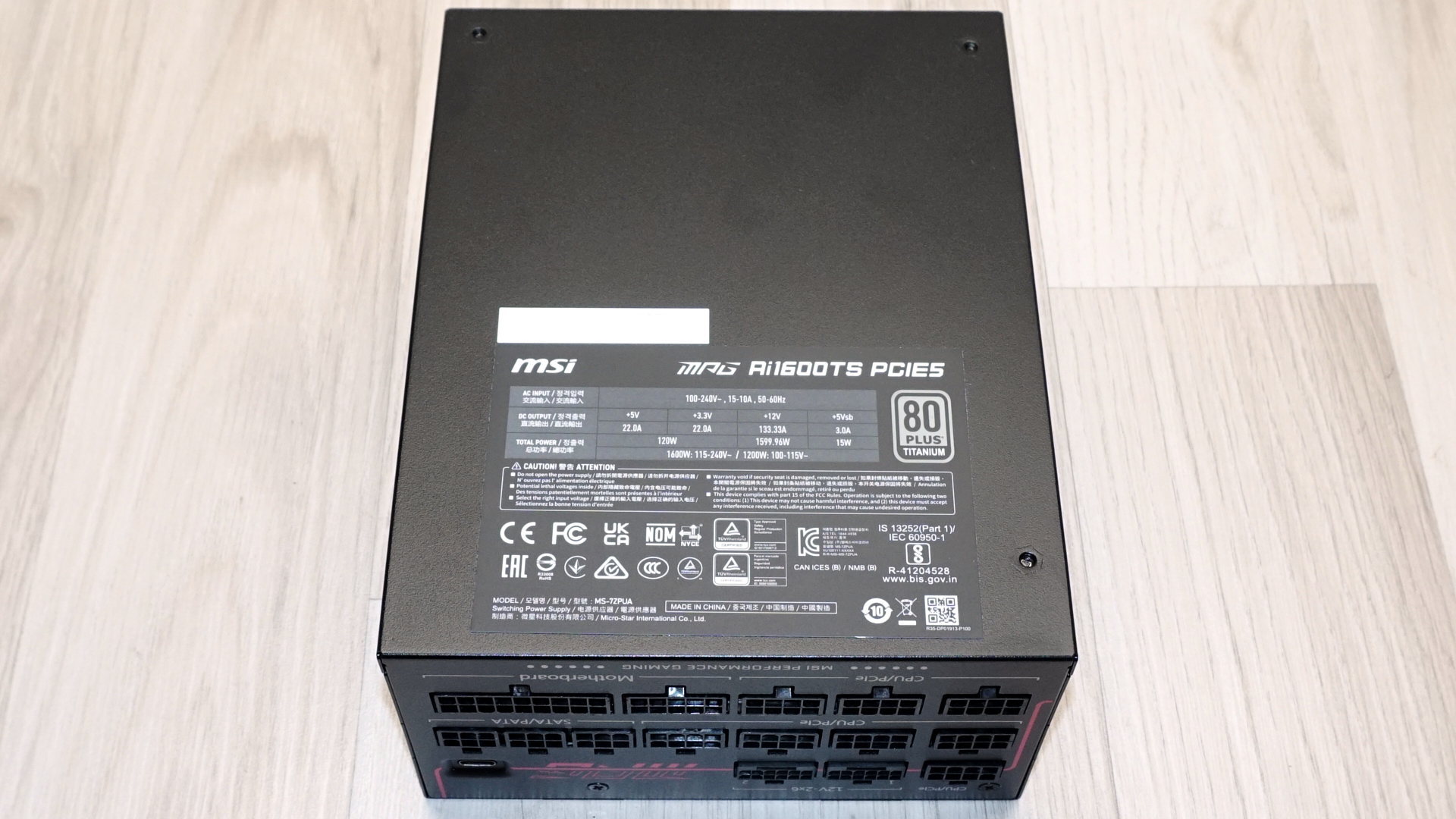

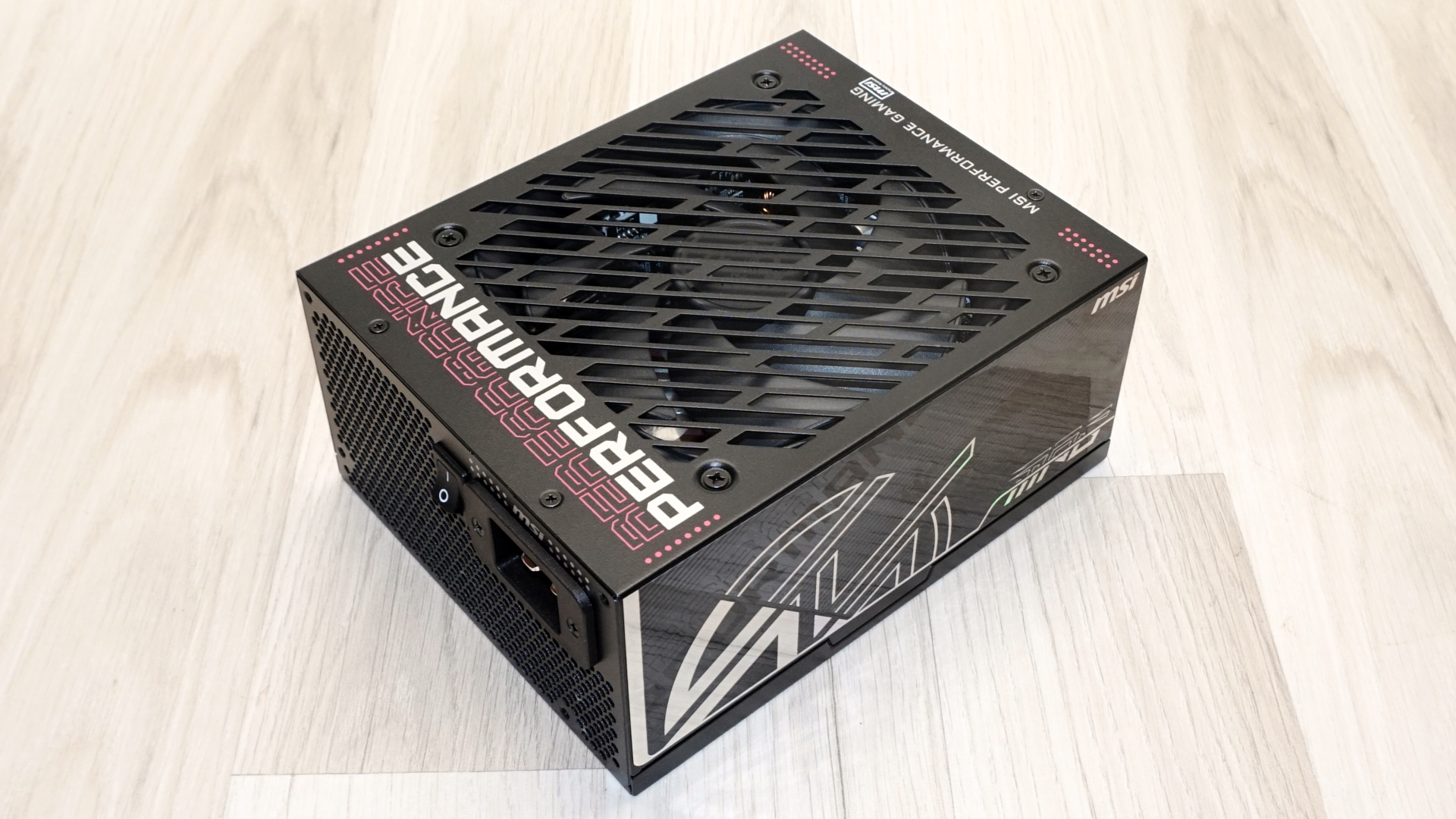

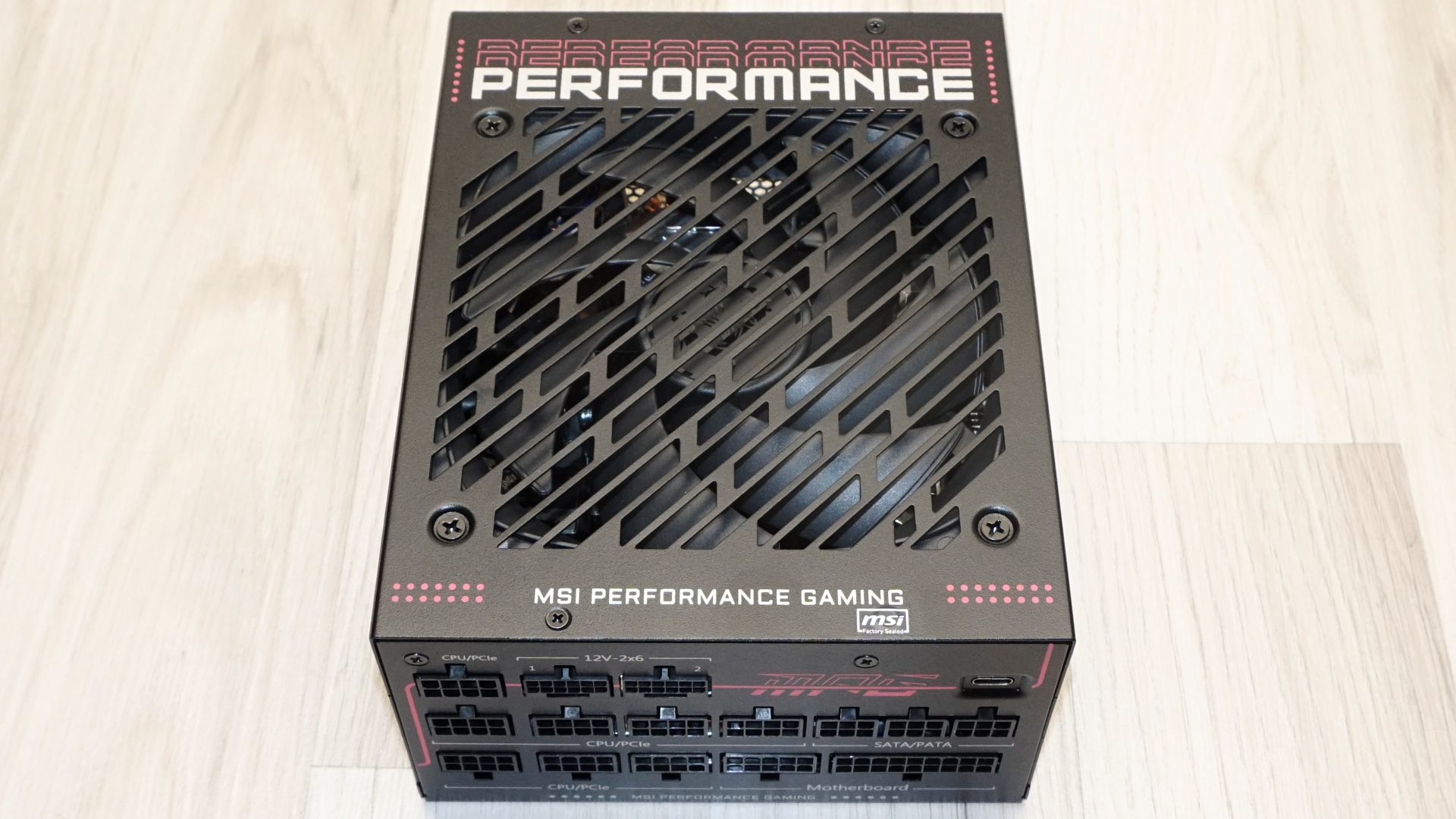

The aesthetic is deliberately complex. The fan finger guard is formed directly from the chassis itself, shaped by parallel trapezoidal cutouts running the diagonal of the intake face. Purple and white fonts and decorative elements appear on nearly every external surface. Glossy stickers cover the left and right side panels, and the top surface carries the standard electrical specifications and certifications label.

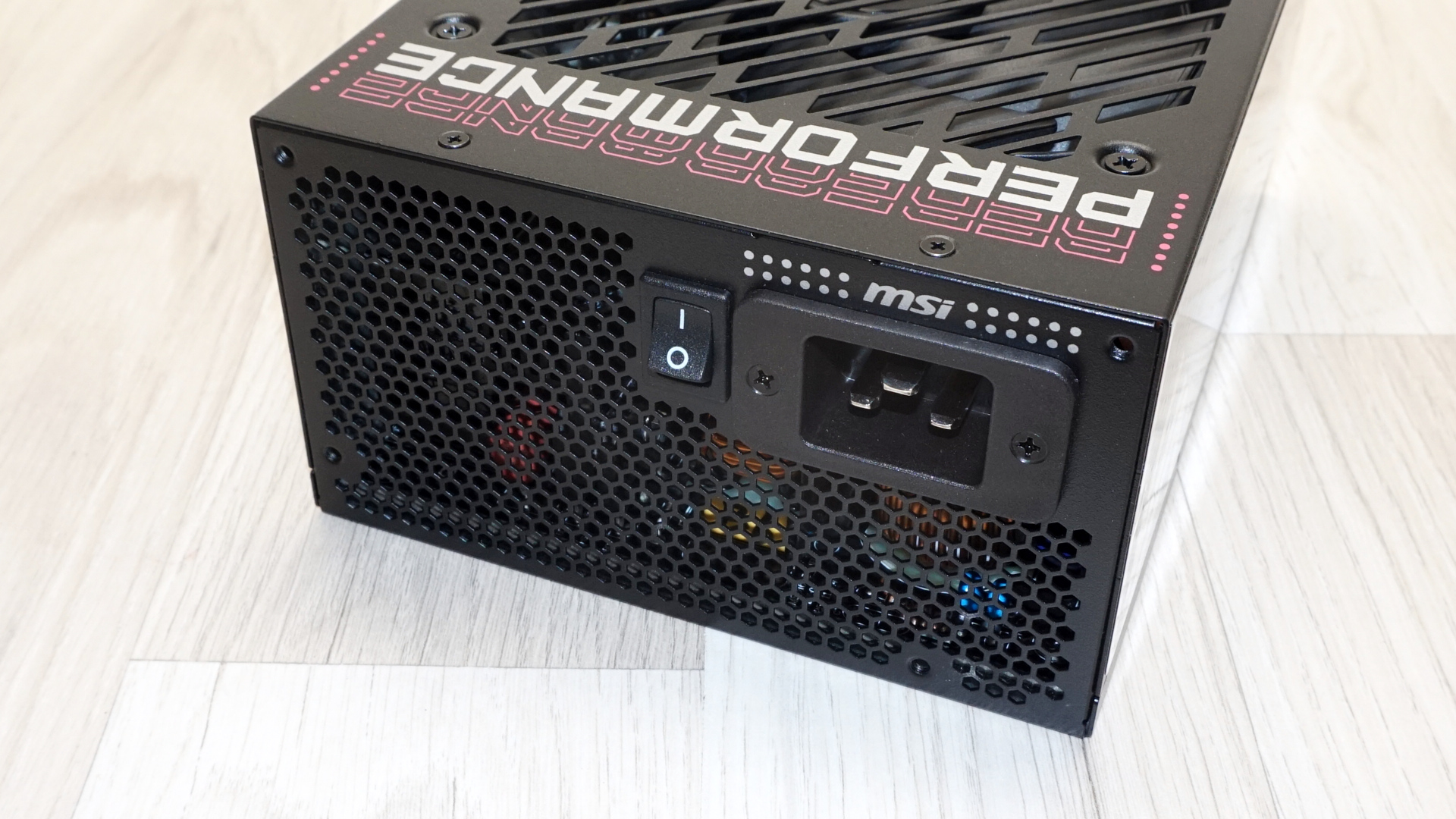

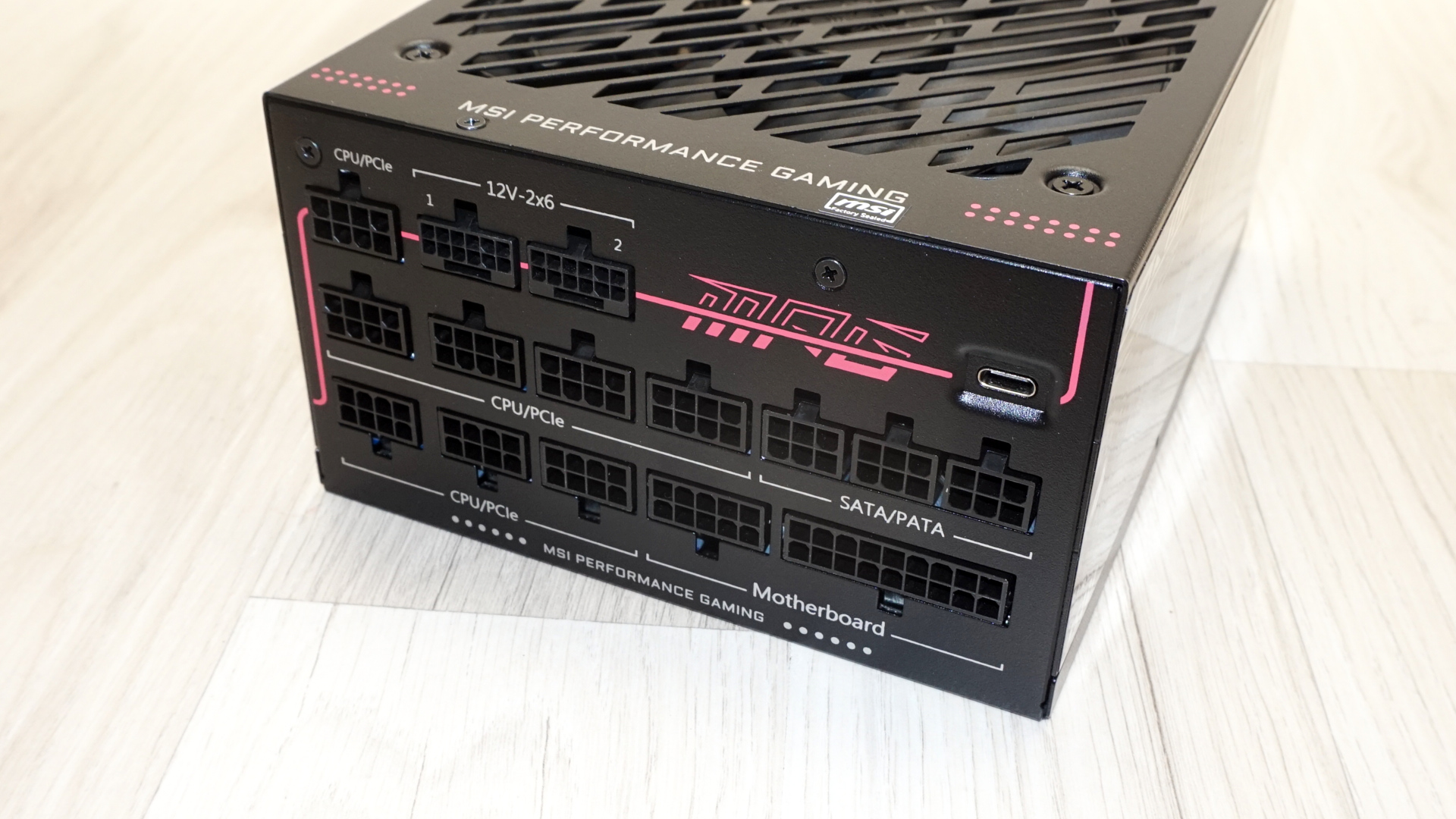

The front panel holds only the rocker switch and the NEMA C20 AC receptacle. The rear panel houses the modular connector array with a white legend printed alongside each socket group, and notably, a USB Type-C port. That connector is the hardware expression of the Ai1600TS’s defining feature.

Image 1 of 2

The USB-C port links the PSU directly to the motherboard, enabling two-way communication between the unit and MSI’s Afterburner software. On the monitoring side, this means real-time visibility into output parameters that would otherwise require a separate inline meter or dedicated hardware. On the control side, it allows basic operational parameters to be adjusted from within the software environment rather than requiring physical intervention.

More significantly, it is the foundation for Safeguard+, MSI’s GPU protection system. On the MAG series, Safeguard+ operates as a connector-level OCP trigger – when a threshold is breached, the system shuts down. On the MPG series, the communication channel allows the PSU to react differently. Rather than cutting power entirely, the unit signals the motherboard to reduce GPU power draw in real time (throttling), keeping the system running while bringing consumption back within safe limits. A physical buzzer on the unit provides an audible alert when a Safeguard event occurs. For workloads that push GPU hardware continuously, the difference between a controlled throttle and a full system shutdown is operationally significant, and probably is the primary justification MSI can claim for the price premium over the MAG lineup.

Internal Design

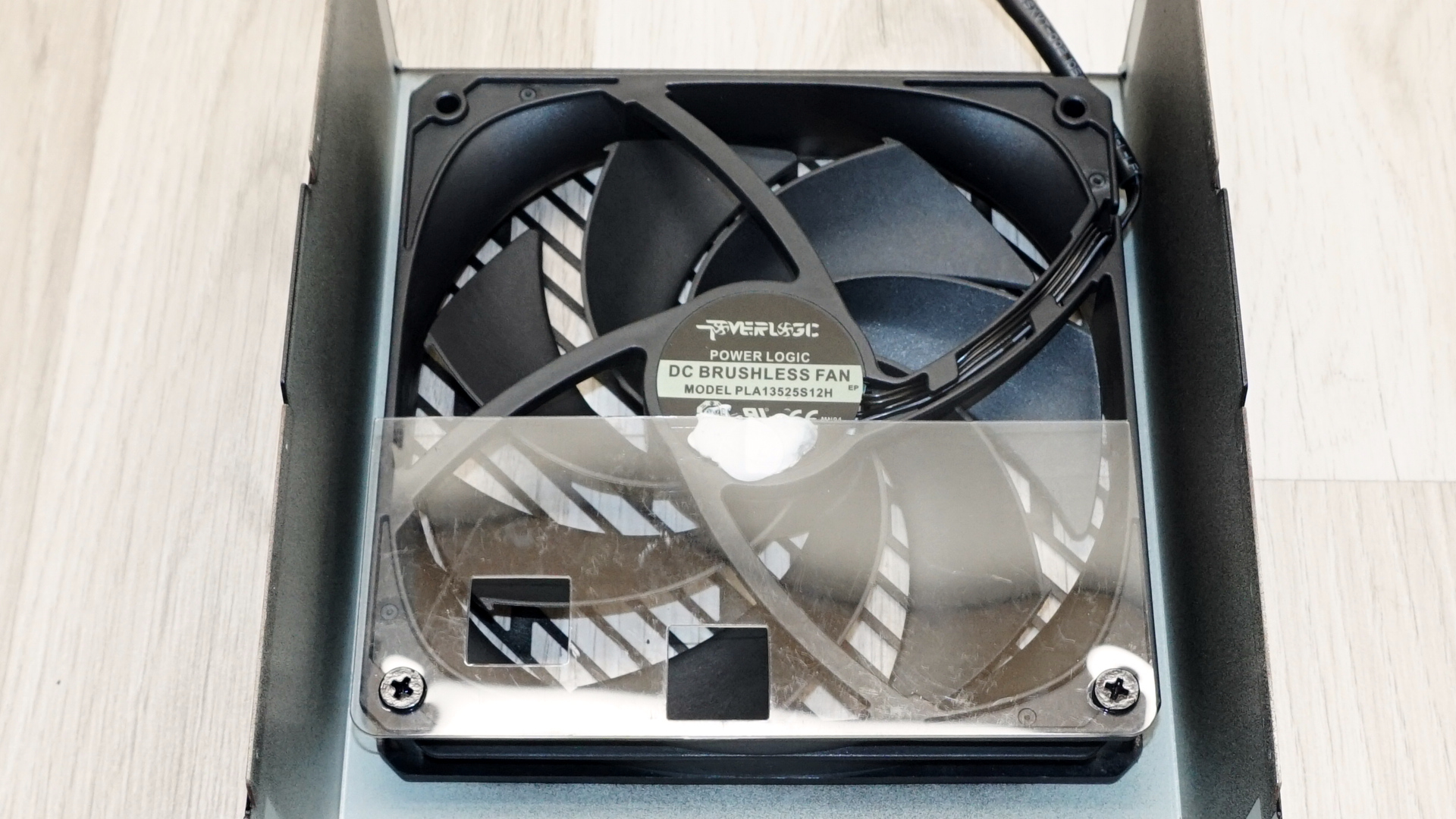

The Ai1600TS is cooled by a Power Logic PLA13525S12H 135mm fan running a fluid dynamic bearing engine. FDB remains the most practical bearing technology for high-wattage units where both acoustics and service life matter. The rated maximum speed of 2300 RPM is high for this fan diameter but not unusual given the sustained thermal load a 1600W design must manage. MSI has added a rotation sensor that triggers an audible buzzer if the fan stops, as well as real-time fan monitoring and profile control via the Afterburner application.

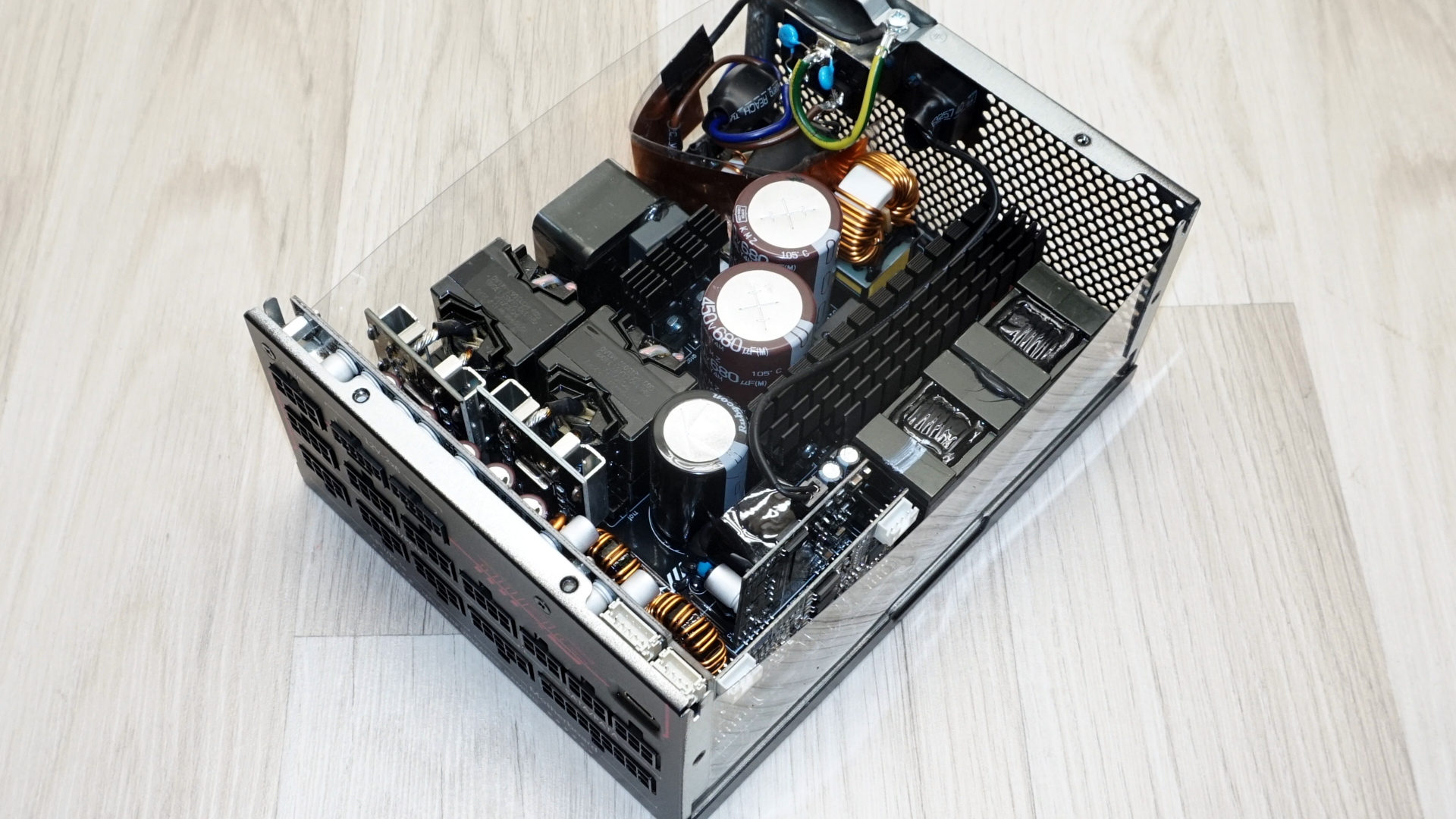

The unit is built by CWT, a Taiwanese OEM with several decades of experience producing mid-to-top-tier PSU platforms for major brands. Channel-Well’s track record is well established and generally positive; their designs have underpinned well-regarded units across multiple product generations.

Image 1 of 2

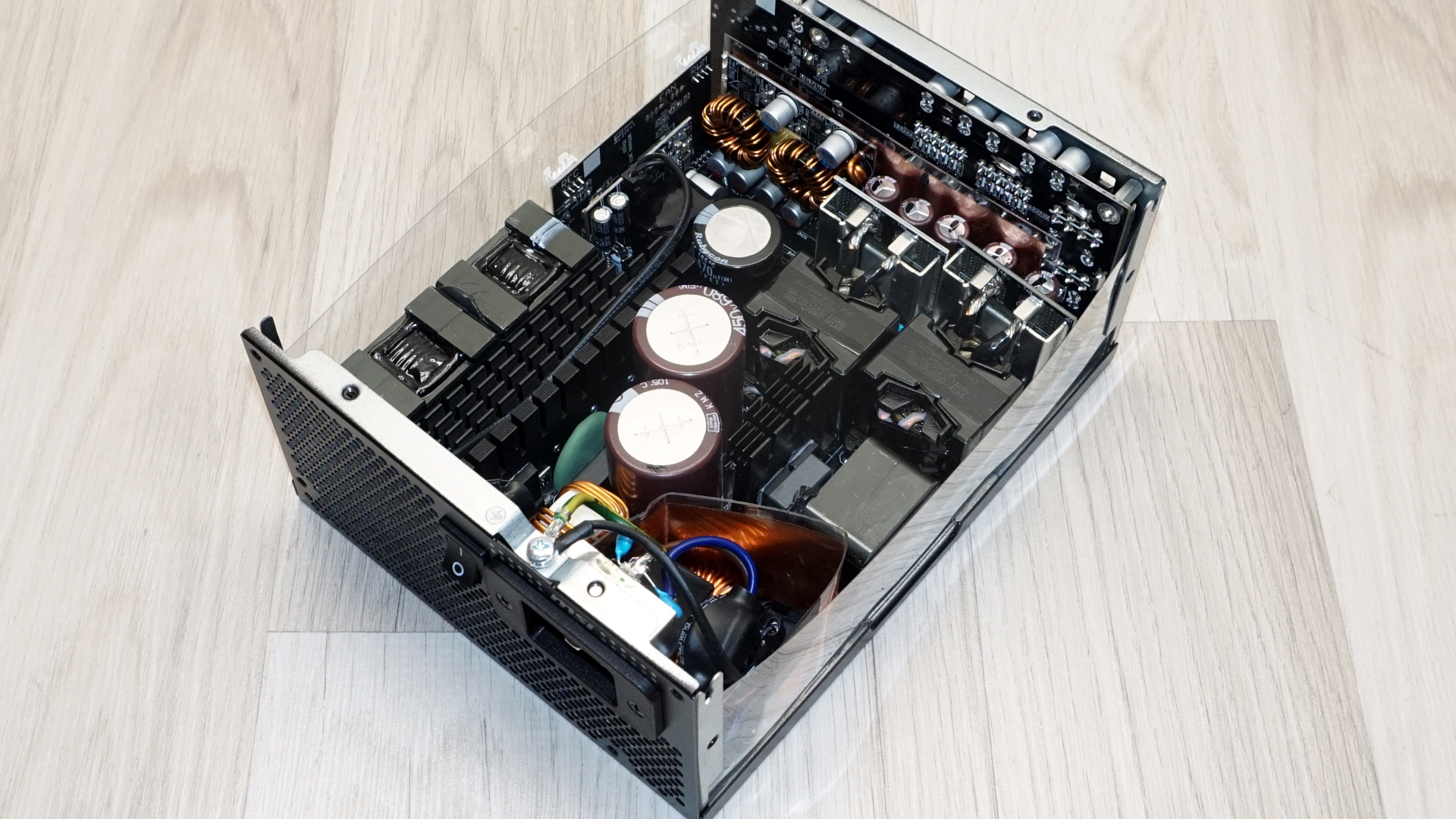

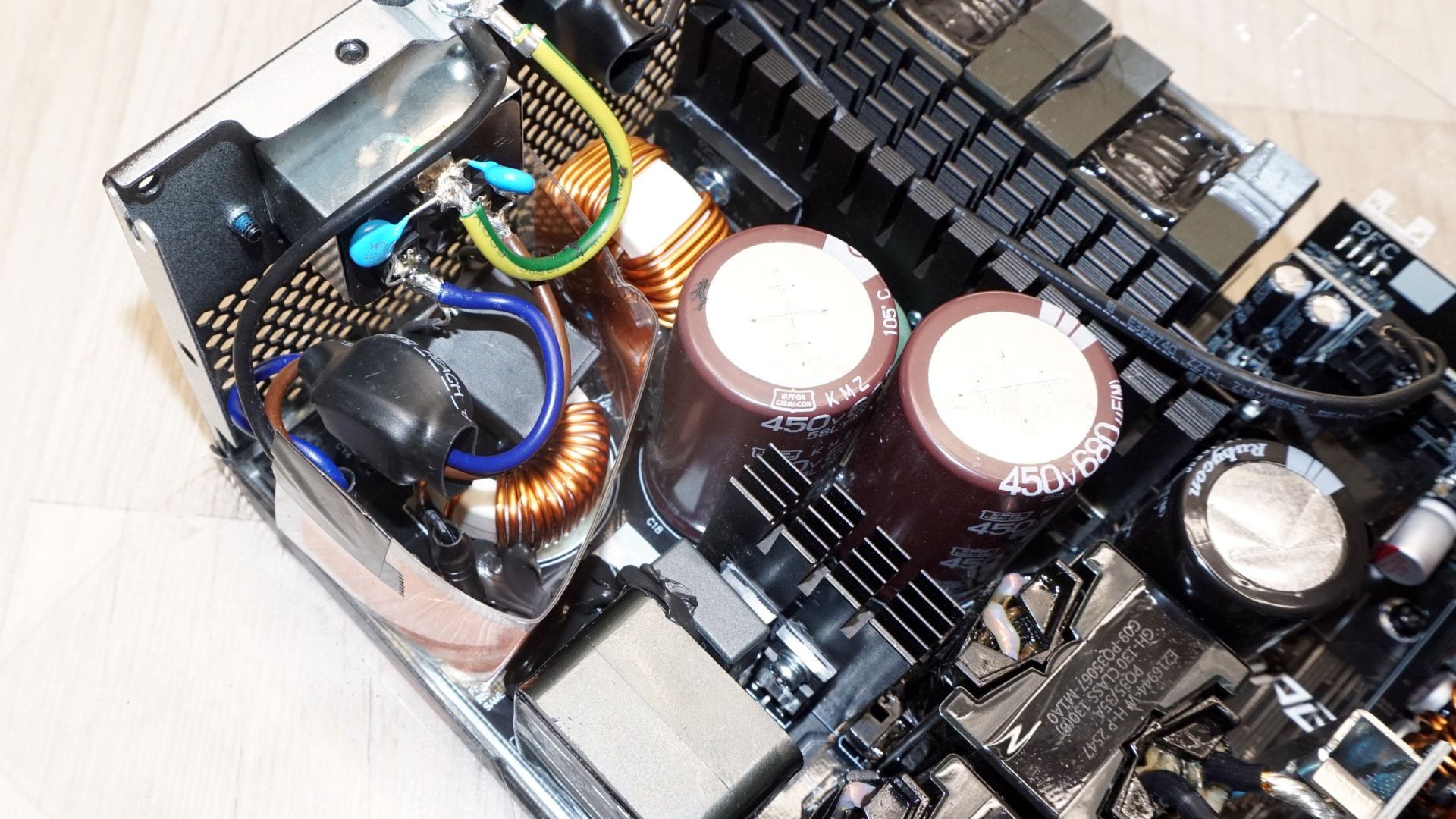

Input filtering is adequate for the class, with four Y capacitors, two X capacitors, and two common-mode inductors. Two rectifying bridges are installed on the largest heatsink along the board edge.

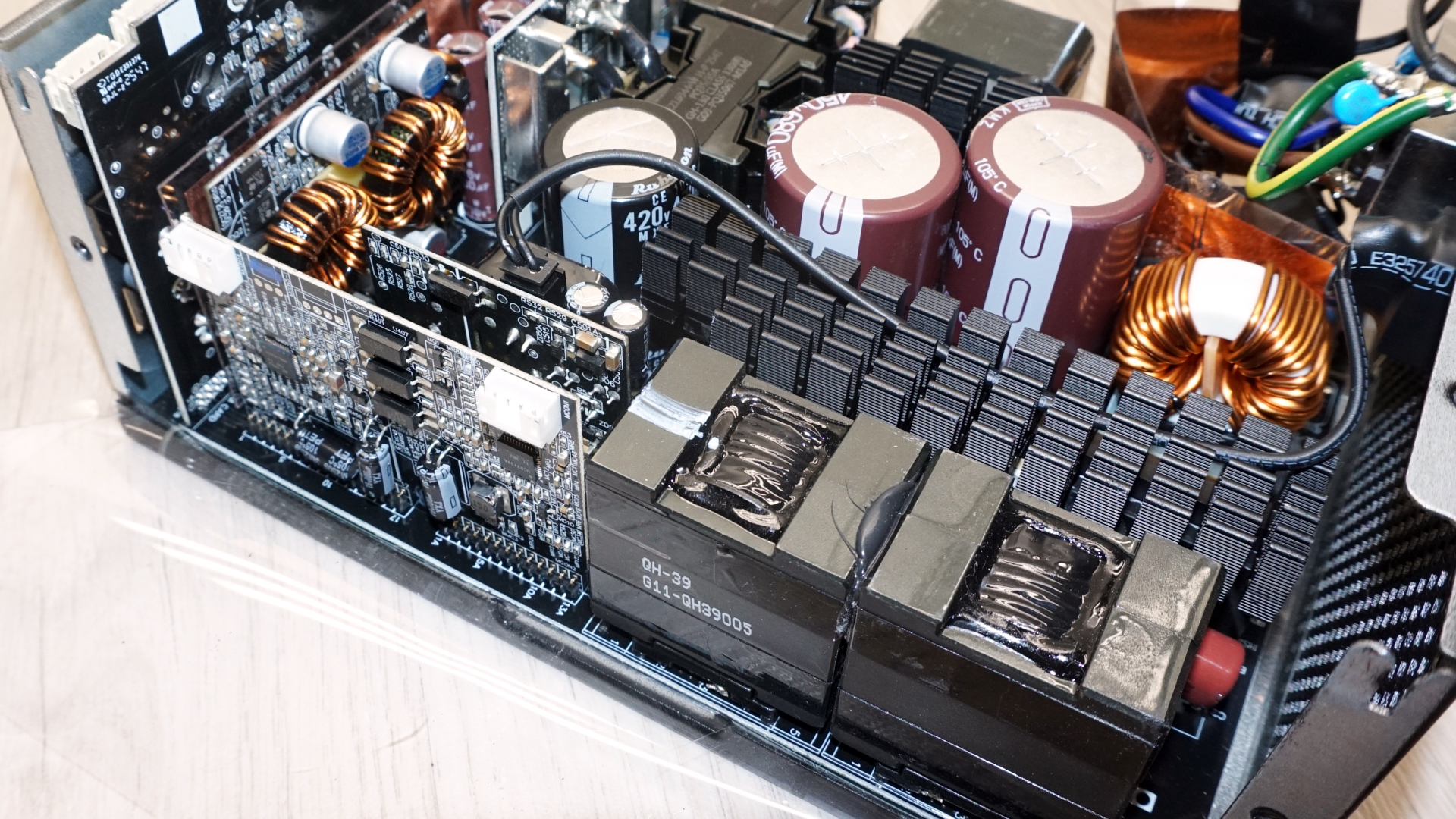

The APFC stage uses four Toshiba K040N60Z1/K015N65C MOSFETs alongside two diodes in a semi-digital, load-based topology, mounted on the same large heatsink as the rectifying bridges. The passive components consist of two large encased inductors and three bulk capacitors, two Nippon Chemi-Con 680μF units and one Rubycon 470μF.

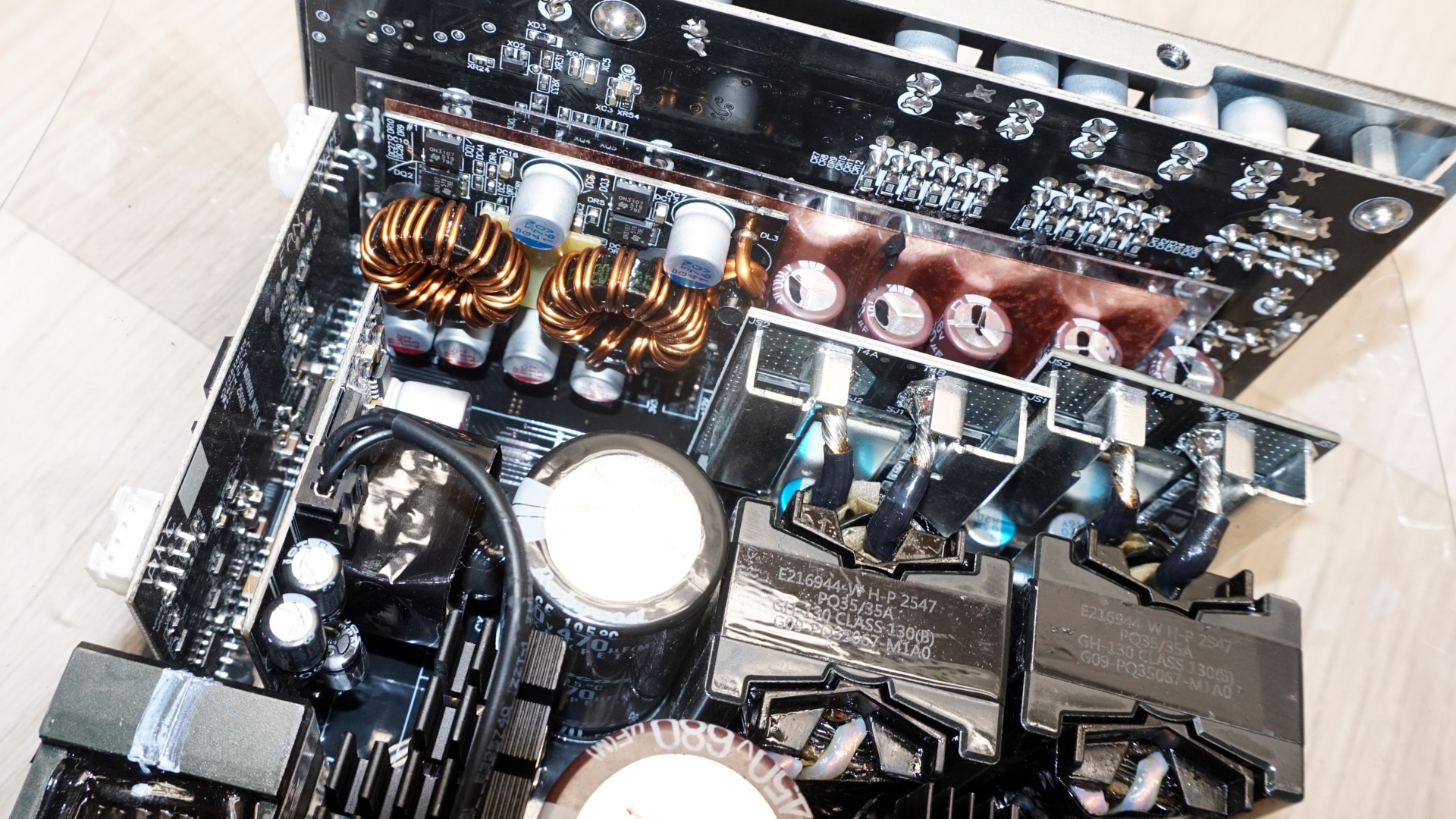

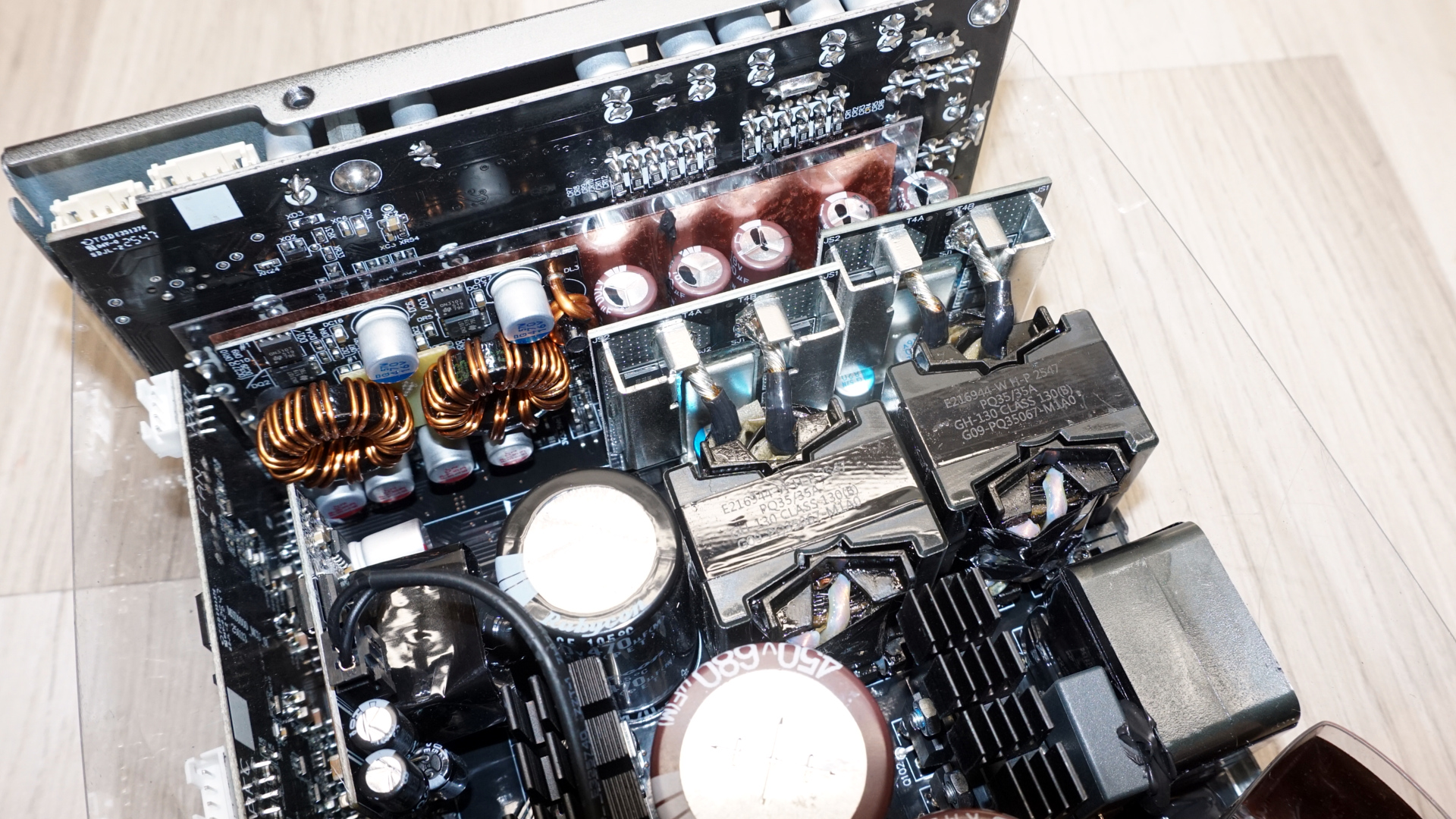

Primary inversion is handled by four Alpha & Omega TF095A60 MOSFETs in a full-bridge topology, mounted on a dedicated heatsink directly ahead of the main transformers. The secondary side generates the 12V rail using twelve Vishay Dale SiRS4600DP MOSFETs in a synchronous rectification topology, arranged on two vertical PCBs next to the main transformers. DC-to-DC converters on a separate daughterboard produce the 3.3V and 5V lines. All electrolytic and solid-state capacitors on the secondary side are sourced from Nippon Chemi-Con and Rubycon exclusively, making this an entirely Japanese passive component design.

Cold Test Results (25°C Ambient)

For the testing of PSUs, we are using high-precision electronic loads with a maximum power draw of 2700 Watts, a Rigol DS5042M 40 MHz oscilloscope, an Extech 380803 power analyzer, two high-precision UNI-T UT-325 digital thermometers, an Extech HD600 SPL meter, a self-designed hotbox, and various other bits and parts.

At 115 VAC, average nominal load efficiency is 92.9%. At 230 VAC, it reaches 93.8%. Both figures comfortably satisfy the Cybenetics and CLEAResult Titanium certification thresholds at 115 VAC. As a matter of fact, it flirts with the Cybenetics Diamond certification at 115 VAC. The 230 VAC result is a little harder to explain, as our sample easily met the Cybenetics Titanium figures, yet the Ai1600TS holds a Cybenetics Platinum certification for 230 VAC input. Efficiency peaks at approximately 50% load, while low-load efficiency is very good as well.

The fan begins spinning at just above 30% load but is effectively inaudible throughout most of the operating range. There is a speed increase approaching full load, but the unit does not become acoustically prominent under cold ambient conditions. Thermal performance is excellent.

Hot Test Results (~45°C Ambient)

At 115 VAC under elevated ambient conditions, average nominal efficiency drops to 91.4%. At 230 VAC, it falls to 92.3%. The degradation is measurable but reasonable, and there are no signs of thermal stress despite the 40°C rating. The unit handles the step-up in ambient temperature without any indication that it is approaching its thermal limits, which is a meaningful result for a 1600W design.

Fan behavior shifts as expected. Under hot conditions, the fan begins spinning at 20% load rather than 30%, and it ramps more quickly than in cold testing. It does not, however, reach maximum speed even at 100% load, which is an exceptionally strong result for a 1600 watt unit. Thermal performance under these conditions is outstanding for the power class.

PSU Quality and Bottom Line

Power Supply Quality

Voltage regulation is very good by current standards. The 12V rail holds to within 0.9% across the full load range, and both the 5V and 3.3V rails regulate to within 0.6%. All three figures sit comfortably below the 1% threshold that characterizes a well-executed high-end design. Ripple filtering is good but not exceptional. The 12V rail peaks at 46mV, the 5V rail at 26mV, and the 3.3V rail at 24mV. All three figures clear the ATX specification limits by a meaningful margin, but stronger ripple suppression on the 12V line would be expected at such a price.

During our routine evaluation, we examine the fundamental protection features of all power supply units we review, including Over Current Protection (OCP), Over Voltage Protection (OVP), Over Power Protection (OPP), and Short Circuit Protection (SCP).

Protection circuit behavior is conservative but sound. The 3.3V OCP triggers at 130% of rated current, and the 5V OCP at 128%. The 12V OCP activates at just 116%, which is a tighter margin than seen on many competing units and leaves less headroom for transient load spikes, though it does not present a practical problem for normal high-load operation. OPP under hot conditions engages at 118% of rated output, a conservative and responsible threshold given the wattage involved.

Swipe to scroll horizontally

Main Output
Load (Watts)	322.59 W	Row 0 – Cell 2	805.14 W	Row 0 – Cell 4	12.01.59 W	Row 0 – Cell 6	1598.5 W	Row 0 – Cell 8
Load (Percent)	20.16%	Row 1 – Cell 2	50.32%	Row 1 – Cell 4	75.1%	Row 1 – Cell 6	99.91%	Row 1 – Cell 8
Row 2 – Cell 0	Amperes	Volts	Amperes	Volts	Amperes	Volts	Amperes	Volts
3.3 V	2.08	3.34	5.2	3.34	7.8	3.32	10.41	3.32
5 V	2.08	5.1	5.2	5.1	7.8	5.07	10.41	5.07
12 V	25.23	12.09	63.07	12.07	94.6	12.01	126.14	11.98

Swipe to scroll horizontally

Line	Regulation	Voltage Ripple (mV)
Row 1 – Cell 0	(20% to 100% load)	20% Load	50% Load	75% Load	100% Load	CL1 12V	CL2 3.3V + 5V
3.3V	0.6%	20	22	24	24	22	24
5V	0.6%	22	24	24	26	20	24
12V	0.9%	24	32	40	46	46	28

Bottom Line

The MSI MPG Ai1600TS PCIE5 is a technically accomplished unit. The component selection is impeccable, the efficiency is confirmed comfortably reaching Titanium levels, the thermal performance under sustained load is genuinely impressive, and the Safeguard+ implementation on the MPG platform is a functionally distinct feature with real operational value for users pushing GPU hardware continuously. The 12-year warranty is one of the longest in the industry and reflects a manufacturer that stands behind the build quality. These are not incremental improvements over lower-tier offerings; they are substantive differences.

The component selection deserves specific mention. Nippon Chemi-Con and Rubycon capacitors throughout the secondary side are not a given at any price point, and these are paired with silicon like Vishay Dale MOSFETs on the secondary side and Toshiba silicon in the APFC stage. The Ai1600TS reads like a bill of materials assembled without negotiation on component quality. That matters for long-term reliability in a way that efficiency figures and marketing language cannot fully capture.

The overall performance results are very good, although they undeniably could have been better. The stock fan curve is well-tuned, conservative enough to remain inaudible through most of the operating range and never reaches its ceiling even at maximum load under elevated ambient conditions. For a 1600W unit, that is quite rare. Voltage regulation across all three rails is tight, and the thermal testing produced no signs of stress even under sustained full load in a hot environment. Power quality is very good, but we would have liked to see better ripple filtering at this price point. The price, however, is a serious obstacle.

Retailing at $500, the Ai1600TS costs more than twice what comparably performing units typically ask, and the premium is driven almost entirely by the digital interface and the Afterburner ecosystem rather than raw electrical performance. Buyers who have no interest in Safeguard+ integration or real-time software monitoring are effectively paying a large surcharge for features they will never use.

The unit delivers on every technical promise MSI makes for it. However, the value equation requires careful consideration. At $500, the pricing is reasonable and competitive, landing significantly below the Seasonic Prime TX-1600 Noctua Edition and MSI’s own MEG AI1600T Titanium, undercutting both a major rival and MSI’s flagship. On the other hand, those shopping for a $500+ unit are hardly ever limited by budget and their selection criteria lie elsewhere.

Builders who specifically need the Safeguard+ GPU communication feature, who intend to run sustained maximum loads in thermally demanding enclosures, and who are investing in a long-term platform where the 12-year warranty carries genuine weight, may find the MPG Ai1600TS PCIE5 a justifiable purchase.
